16 APARTMENTS AND PUBLIC SPACE | BERNAT BRANSI

ARCHITECTS

BCQ arquitectura barcelona

LOCATION

Barcelona

YEAR

2021

CLIENT

I-now Bernat Bransi 48-58, SL

AREA

3.520,48 m²

STATUS

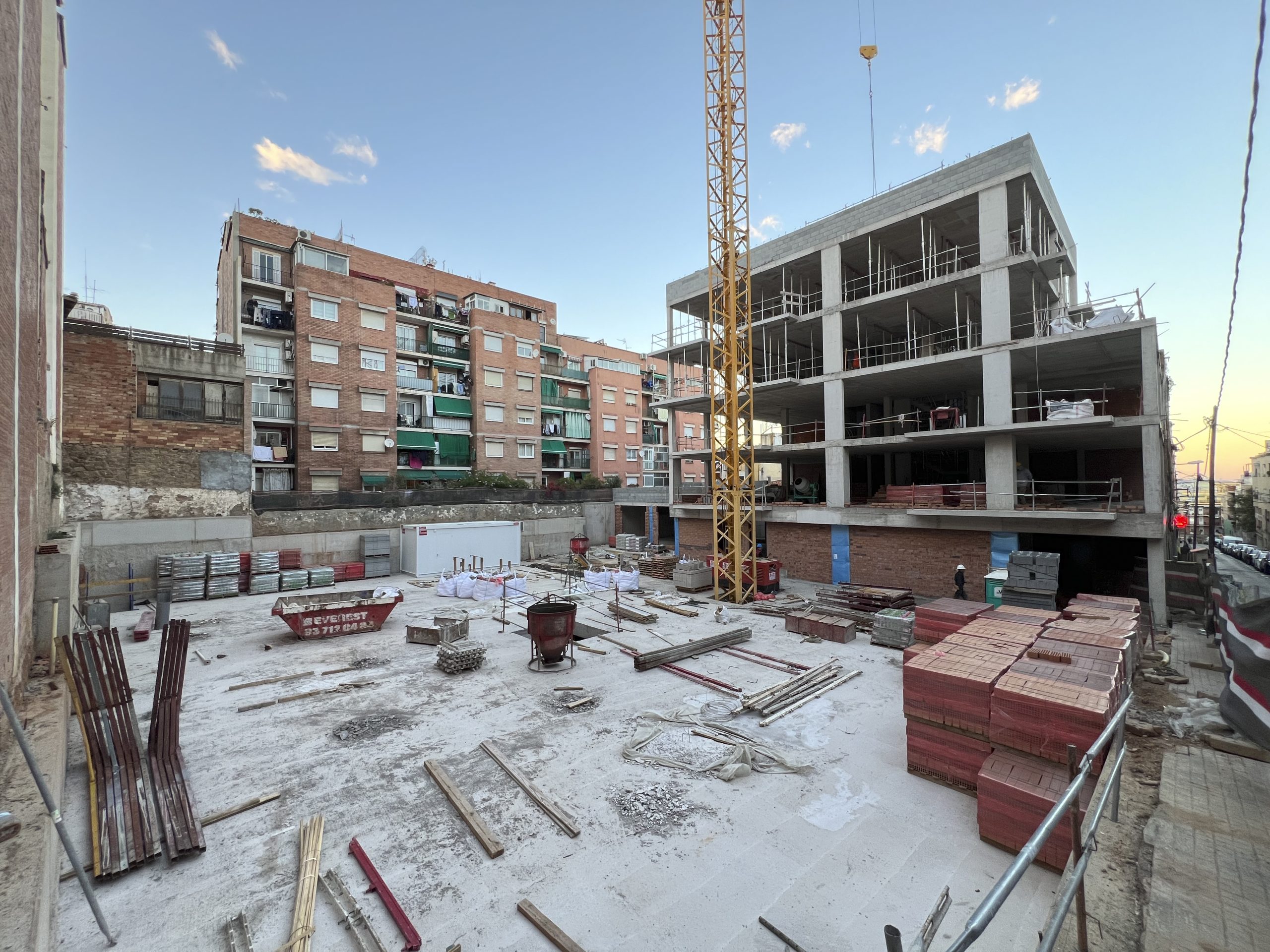

Under construction

COLLABORATOR

Nolac Enginyers (structure engineer), AVC Enginyeria (MEP engineering), FAHE Consulting Arquitectura (construction management)

CONTRACTOR

BUDGET

The plot occupies an existing lot between party walls, with an area of 1,092m², located in the Horta-Guinardó district of Barcelona, in the Carmel neighborhood, a neighborhood with a complex orography marked by its location on the northern side of the three hills of the city. The topography is marked by this slope, a longitudinal slope along Carrer Bransi of approximately 8%, which is equivalent to a difference in height of about 2.50m.

The lot has a fairly regular geometry, with a slope inside, solved with two terraces, the bottom one with a level of 2m above the street slope at the lowest elevation to the east of the plot, and the second level is about 2.50m above the lowest point, which corresponds to the highest elevation of the street.
